Fluxon.Components.Navlist (Fluxon v3.0.0)

A compound navigation system for building structured menus, sidebars, and section indexes.

Navlist is a pure-markup component family with no client-side state. It composes a <nav> container, optional section headings, and link items that delegate to Phoenix.Component.link/1 for navigation. Items render an active state via the data-active attribute, which makes the current selection styleable from CSS without conditional class logic on the server.

The system is composed of a few pieces meant to compose together:

navlist/1: the container that provides spacing, an optional heading, and stacking of items.
navheading/1: an <h3> label used to group related items inside or above a list.
navlink/1: an interactive item that renders as a link or button depending on which attributes are passed through.

A typical structure looks like this:

navlist
├── navheading (optional, rendered automatically when `heading` is set)
├── navlink
├── navlink
└── navlink

Multiple navlists stacked one after another receive automatic top spacing through a CSS sibling selector ([&+[data-part=navlist]]:mt-6), so adjacent sections separate visually without extra wrappers.

Choosing between `navlist` and `tabs`

Use navlist for navigation that changes the page or route (sidebars, settings indexes, docs menus). Use Fluxon.Components.Tabs for in-page panel switching where content swaps inside the same view without a navigation event.

Usage

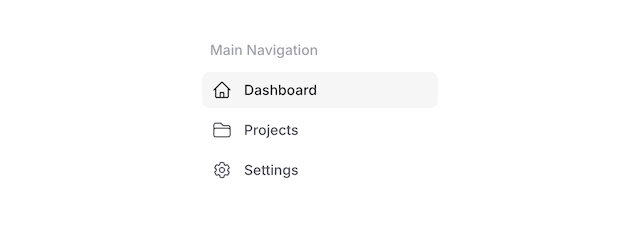

A simple navigation list with a heading and three items:

<.navlist heading="Main Navigation">
  <.navlink navigate={~p"/dashboard"} active>
    <.icon name="hero-home" class="size-5" /> Dashboard
  </.navlink>
  <.navlink navigate={~p"/projects"}>
    <.icon name="hero-folder" class="size-5" /> Projects
  </.navlink>
  <.navlink navigate={~p"/settings"}>
    <.icon name="hero-cog-6-tooth" class="size-5" /> Settings
  </.navlink>
</.navlist>

The heading attribute is a shortcut for rendering a navheading/1 as the first child. For fully custom heading markup, omit heading and place a navheading/1 (or any element) inside the slot directly.

Sections

Stack multiple navlists to group items into labeled sections. Adjacent navlists are separated automatically with top margin:

<.navlist heading="Workspace">
  <.navlink navigate={~p"/dashboard"} active>
    <.icon name="hero-home" class="size-5" /> Dashboard
  </.navlink>
  <.navlink navigate={~p"/projects"}>
    <.icon name="hero-folder" class="size-5" /> Projects
  </.navlink>
</.navlist>

<.navlist heading="Account">
  <.navlink navigate={~p"/profile"}>
    <.icon name="hero-user" class="size-5" /> Profile
  </.navlink>
  <.navlink navigate={~p"/preferences"}>
    <.icon name="hero-cog-6-tooth" class="size-5" /> Preferences
  </.navlink>
</.navlist>

Active State

Mark the current item with the active attribute. Active styling is applied through the data-active attribute on the rendered element, so it can be combined or extended with any data-active: Tailwind variant on a custom class:

<.navlink navigate={~p"/dashboard"} active={@current_path == "/dashboard"}>
  Dashboard
</.navlink>

Computing active from a LiveView assign keeps the source of truth on the server. Because the active state is expressed as a data attribute, no JavaScript is required to keep styles in sync.

Navigation Modes

navlink/1 forwards every link-related attribute to Phoenix.Component.link/1, so the same item can perform different kinds of navigation depending on which attribute is set:

Attribute	Behavior
`navigate`	Full LiveView navigation to a new live session. Use for top-level destinations.
`patch`	Patch the current LiveView with a new URL. Use for tabs and filters that share state.
`href`	Standard browser navigation. Use for external links or non-LiveView routes.
`phx-click`	Client or server event without navigation. Use for toggles and expandable groups.

Standard anchor attributes (target, download, rel, hreflang, type, referrerpolicy), link options (replace, method, csrf_token), and button attributes (disabled, formaction, name, value, etc.) are all accepted via the global :rest attribute.

<.navlink patch={~p"/messages?folder=inbox"} replace>Inbox</.navlink>
<.navlink navigate={~p"/billing"}>Billing</.navlink>
<.navlink href="https://docs.example.com" target="_blank" rel="noopener">
  Documentation
</.navlink>

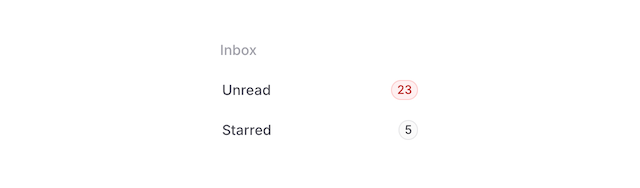

Icons and Trailing Content

The link slot is a flex row, so icons and trailing badges align horizontally with consistent spacing. Use ml-auto on the trailing element to push it to the right edge:

<.navlist heading="Inbox">
  <.navlink href="/inbox/unread">
    <.icon name="hero-inbox" class="size-5" />
    Unread
    <.badge variant="pill" color="red" class="ml-auto">23</.badge>
  </.navlink>

  <.navlink href="/inbox/starred">
    <.icon name="hero-star" class="size-5" />
    Starred
    <.badge variant="pill" class="ml-auto">5</.badge>
  </.navlink>

  <.navlink href="/inbox/archive">
    <.icon name="hero-archive-box" class="size-5" />
    Archive
  </.navlink>
</.navlist>

Icons rendered with the icon helper inherit a default size-4 through the link's internal styles when they carry the .icon class, so you can omit an explicit size in simple cases and pass a class (for example class="size-5") only when you want a larger icon.

Custom Headings

When the built-in heading attribute is not enough, render navheading/1 directly inside the list. This is useful for uppercase labels, captions, or headings that need badges and icons:

<.navlist>
  <.navheading class="text-xs uppercase tracking-wider text-foreground-softest">
    Customers
  </.navheading>

  <.navlink navigate={~p"/customers"}>Customers</.navlink>
  <.navlink navigate={~p"/segments"}>Segments</.navlink>
</.navlist>

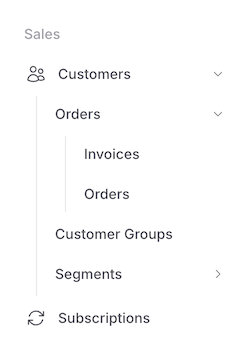

Expandable Groups

Navlist has no built-in expand/collapse behavior. Hierarchical groups are composed by combining navlink/1 with Phoenix.LiveView.JS.toggle_attribute/1 on a shared data-expanded attribute, then animating a sibling container with Tailwind grid utilities:

<.navlist heading="Sales">
  <.navlink phx-click={JS.toggle_attribute({"data-expanded", ""})}>
    <.icon name="hero-users" class="size-5" /> Customers
    <.icon
      name="hero-chevron-right"
      class="size-3 ml-auto text-zinc-500 in-data-expanded:rotate-90 transition-transform duration-200"
    />
  </.navlink>
  <div class="grid grid-rows-[0fr] [[data-expanded]+&]:grid-rows-[1fr] transition-all duration-200">
    <div class="overflow-hidden px-4 border-l ml-3">
      <.navlist>
        <.navlink navigate={~p"/customers/active"}>Active</.navlink>
        <.navlink navigate={~p"/customers/at-risk"}>At Risk</.navlink>
      </.navlist>
    </div>
  </div>

  <.navlink navigate={~p"/subscriptions"}>
    <.icon name="hero-arrow-path" class="size-5" /> Subscriptions
  </.navlink>
</.navlist>

The pattern relies on three pieces:

JS.toggle_attribute({"data-expanded", ""}) toggles a marker attribute on the trigger.
The collapsible panel uses grid-rows-[0fr] collapsed and grid-rows-[1fr] when expanded, which animates height smoothly through a CSS transition.
The chevron rotates via the in-data-expanded:rotate-90 Tailwind variant, reading the expansion state from the trigger ancestor.

Because the toggle is a client-side attribute change, expand/collapse state is preserved across LiveView patches without round-tripping to the server.

Persisting expanded state

Client-side toggles are reset on full page navigation. To remember which groups are open across navigations, drive the data-expanded attribute from a server assign instead of toggling it on the client.

Examples

Sidebar with sections, icons, and a counter:

<aside class="w-64 p-4">
  <.navlist heading="Workspace">
    <.navlink navigate={~p"/dashboard"} active={@section == :dashboard}>
      <.icon name="hero-home" class="size-5" /> Dashboard
    </.navlink>
    <.navlink navigate={~p"/inbox"} active={@section == :inbox}>
      <.icon name="hero-inbox" class="size-5" /> Inbox
      <.badge variant="pill" color="red" class="ml-auto">{@unread_count}</.badge>
    </.navlink>
    <.navlink navigate={~p"/projects"} active={@section == :projects}>
      <.icon name="hero-folder" class="size-5" /> Projects
    </.navlink>
  </.navlist>

  <.navlist heading="Account">
    <.navlink navigate={~p"/profile"}>
      <.icon name="hero-user" class="size-5" /> Profile
    </.navlink>
    <.navlink navigate={~p"/billing"}>
      <.icon name="hero-credit-card" class="size-5" /> Billing
    </.navlink>
  </.navlist>
</aside>

Settings index that patches the current LiveView:

<.navlist heading="Settings">
  <.navlink :for={tab <- @tabs} patch={~p"/settings?tab=#{tab.id}"} active={@active == tab.id}>
    <.icon name={tab.icon} class="size-5" /> {tab.label}
  </.navlink>
</.navlist>

Action item that triggers a server event with a confirmation prompt:

<.navlist heading="Danger Zone">
  <.navlink phx-click="archive_workspace" data-confirm="Archive this workspace?">
    <.icon name="hero-archive-box" class="size-5" /> Archive workspace
  </.navlink>
  <.navlink
    phx-click="delete_workspace"
    data-confirm="This cannot be undone. Continue?"
    class="text-danger data-active:bg-danger/10"
  >
    <.icon name="hero-trash" class="size-5" /> Delete workspace
  </.navlink>
</.navlist>

Rendering items from a list with :for:

<.navlist heading="Customers">
  <.navlink
    :for={item <- @nav_items}
    navigate={item.path}
    active={item.path == @current_path}
  >
    <.icon name={item.icon} class="size-5" />
    <span class="grow">{item.label}</span>
    <.badge :if={item.badge} color="blue">{item.badge}</.badge>
  </.navlink>
</.navlist>

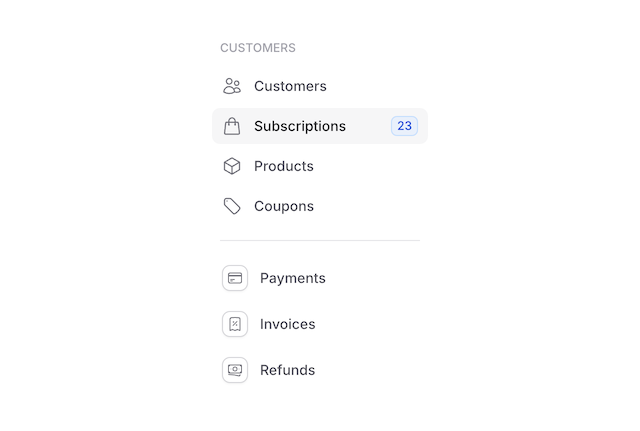

Custom-styled navlinks for a marketing-style sidebar:

<.navlist>
  <.navheading class="text-xs uppercase font-medium text-zinc-400">
    Customers
  </.navheading>

  <.navlink
    :for={
      {icon, label, badge, path, active} <- [
        {"hero-users", "Customers", nil, ~p"/customers", false},
        {"hero-shopping-bag", "Subscriptions", "23", ~p"/subscriptions", true},
        {"hero-cube", "Products", nil, ~p"/products", false},
        {"hero-tag", "Coupons", nil, ~p"/coupons", false}
      ]
    }
    navigate={path}
    active={active}
    class={[
      "group py-1.5 relative",
      "hover:text-blue-600 hover:bg-white hover:shadow-sm",
      "hover:ring-1 ring-zinc-200",
      "hover:after:absolute hover:after:inset-y-0 hover:after:left-0",
      "hover:after:my-1.5 hover:after:w-1 hover:after:bg-blue-600",
      "hover:after:rounded-r-md"
    ]}
  >
    <.icon class="size-5 text-zinc-500 group-hover:text-blue-600" name={icon} />
    <span class="grow">{label}</span>
    <.badge :if={badge} color="blue">{badge}</.badge>
  </.navlink>
</.navlist>

Summary

Components

navheading(assigns)

Renders an <h3> heading styled to label a group of navigation items.

navlink(assigns)

Renders an interactive navigation item that delegates to Phoenix.Component.link/1.

navlist(assigns)

Renders a <nav> container that stacks navigation items with consistent spacing.

Components

navheading(assigns)

Renders an <h3> heading styled to label a group of navigation items.

Use this inside a navlist/1 when you need richer markup than the parent's heading shortcut allows, for example uppercase captions, badges next to the label, or icons. The heading uses muted foreground colors and bottom margin tuned to sit above a stack of navlink/1 items.

Examples

<.navheading>Main Navigation</.navheading>

Apply a custom class for uppercase captions or other label treatments:

<.navheading class="text-xs uppercase tracking-wider">
  Account Settings
</.navheading>

Attributes

class (:any) - Additional CSS classes merged with the heading's base typography and spacing styles. Defaults to nil.

Slots

inner_block (required) - The label content. Plain text, icons, badges, or any inline elements.

navlink(assigns)

Renders an interactive navigation item that delegates to Phoenix.Component.link/1.

The element rendered depends on which navigation attribute is set: navigate and patch produce LiveView navigation, href produces a standard anchor, and supplying button-only attributes (or no navigation attribute at all) makes it behave as a button. The slot is laid out as a flex row, so icons, labels, and trailing badges align horizontally.

Active styling is driven by the data-active attribute on the rendered element, which lets you extend or override the appearance with data-active: Tailwind variants on a custom class without server-side conditional logic.

Examples

<.navlink navigate={~p"/dashboard"} active>Dashboard</.navlink>

Combine an icon, a label, and a trailing badge pushed to the right edge with ml-auto:

<.navlink navigate={~p"/inbox"}>
  <.icon name="hero-envelope" class="size-5" /> Inbox
  <.badge class="ml-auto">99+</.badge>
</.navlink>

<.navlink navigate={~p"/archive"}>
  <.icon name="hero-archive-box" class="size-5" /> Archive
</.navlink>

Switch navigation behavior by choosing patch, navigate, or href:

<.navlink patch={~p"/messages"} replace>Messages</.navlink>
<.navlink navigate={~p"/settings"}>Settings</.navlink>
<.navlink href="https://docs.example.com" target="_blank" rel="noopener">Docs</.navlink>

Compute the active state from a server assign to keep the source of truth on the LiveView:

<.navlink navigate={~p"/dashboard"} active={@current_path == "/dashboard"}>
  Dashboard
</.navlink>

Trigger a server event with a confirmation prompt instead of navigating:

<.navlink phx-click="sign_out" data-confirm="Sign out of your account?">
  <.icon name="hero-arrow-right-on-rectangle" class="size-5" /> Sign out
</.navlink>

Attributes

class (:any) - Additional CSS classes merged with the link's base layout, hover, and active styles. Use data-active: Tailwind variants to customize the appearance of the active state.
Defaults to nil.
active (:boolean) - Marks the item as the current selection. Sets data-active on the rendered element so active styling is applied through CSS rather than conditional class logic. Compute this from a server assign (for example @current_path == ~p"/dashboard") to keep the source of truth on the LiveView.
Defaults to false.
Global attributes are accepted. Arbitrary HTML attributes forwarded to the underlying Phoenix.Component.link/1. Includes LiveView navigation (navigate, patch, replace), standard anchor attributes (href, target, download, rel, hreflang, type, referrerpolicy), link options (method, csrf_token), button attributes (disabled, form, formaction, formenctype, formmethod, formnovalidate, formtarget, name, value, autofocus), and any phx-* bindings such as phx-click and phx-value-*. Supports all globals plus: ["target", "download", "rel", "hreflang", "type", "referrerpolicy", "navigate", "patch", "href", "replace", "method", "csrf_token", "autofocus", "disabled", "form", "formaction", "formenctype", "formmethod", "formnovalidate", "formtarget", "name", "type", "value"].

Slots

inner_block (required) - The link content. Typically an icon, a label, and optionally a trailing badge.

navlist(assigns)

Renders a <nav> container that stacks navigation items with consistent spacing.

Use this as the outer wrapper for any navigation list, sidebar section, or settings index. When the heading attribute is set, a navheading/1 is rendered automatically as the first child. Stacking multiple navlists in the same parent applies an automatic top margin between them so sections separate visually without extra wrappers.

Examples

<.navlist heading="Main Navigation">
  <.navlink navigate={~p"/dashboard"} active>Dashboard</.navlink>
  <.navlink navigate={~p"/projects"}>Projects</.navlink>
  <.navlink navigate={~p"/settings"}>Settings</.navlink>
</.navlist>

Omit heading and render a navheading/1 inside the slot when you need custom label markup:

<.navlist>
  <.navheading class="text-xs uppercase tracking-wider">Account</.navheading>
  <.navlink navigate={~p"/profile"}>Profile</.navlink>
  <.navlink navigate={~p"/billing"}>Billing</.navlink>
</.navlist>

Attributes

heading (:string) - Optional heading text rendered as a navheading/1 above the items. Omit this attribute and place a navheading/1 (or any custom element) inside the slot when you need richer markup.
Defaults to nil.
class (:any) - Additional CSS classes merged with the container's base layout and spacing styles. Defaults to nil.
Global attributes are accepted. Arbitrary HTML attributes forwarded to the underlying <nav> element.

Slots

inner_block (required) - The content of the navigation section, typically a series of navlink/1 items.

Fluxon.Components.Navlist (Fluxon v3.0.0)

Choosing between navlist and tabs

Usage

Sections

Active State

Navigation Modes

Icons and Trailing Content

Custom Headings

Expandable Groups

Persisting expanded state

Examples

Summary

Components

Components

navheading(assigns)

Examples

Attributes

Slots

navlink(assigns)

Examples

Attributes

Slots

navlist(assigns)

Examples

Attributes

Slots

Choosing between `navlist` and `tabs`
